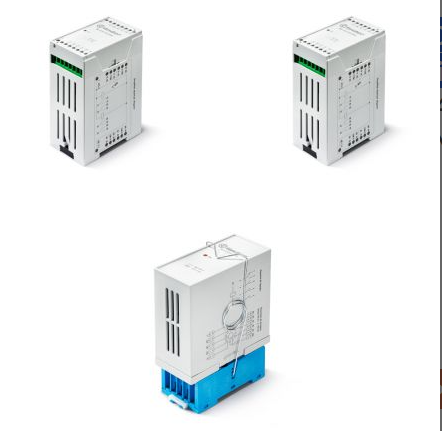

RR.14.9.220.0000 – Switching relay

Giá: Liên hệ

Model: RR.14.9.220.0000

Nhà sản xuất: FINDER

Xuất xứ: Đang cập nhật

Danh mục: FINDER

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
info@pumptech.vn

Manufacturer: FINDER

Manufacturer Part No: RR.14.9.220.0000

CONTACT FEATURES
Contact settings	4 reversible
Rated current / Max instant current [A]	8/15
Rated voltage / Max. switchable voltage [V AC (50/60 Hz)]	250/400
Rated load in AC1 [VA]	2000
Nominal load in AC15 [VA]	400
Single phase motor power (230 V AC) [kW]	0.3
Breaking capacity in DC1: 30/110 / 220V [A]	8 / 0.3 / 0.12
Minimum switching load [mW (V / mA)]	300 (5/5)
Standard contact material	AgCdO
Power Features
Nominal supply voltage (Un) [V DC]	24 – 48 – 110 … 125 – 220 … 250
Rated power DC [W]	<4
Operating range [V DC]	(0.8 … 1.1)
General features
Mechanical life AC / DC [cycles]	10,000,000
Electrical life at nominal load in AC1 [cycles]	100,000
Operating time: operation / de-operation [ms]	2.9 / 2.5
Isolation between the control and the contacts (1.2 / 50 μs) [kV]	6 (8 mm)
Dielectric strength between open contacts [V AC]	1000
Ambient temperature [° C]	-40 … + 55
Degree of protection	IP20
