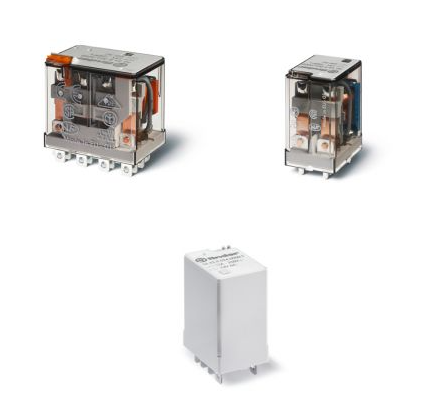

56.34.9.024.4010 Finder 4PDT Non-Latching Relay Plug In

Model: 62.32.8.024.0040

Hãng: FINDER

Liên hệ

Model: 60.13.9.024.0074

Hãng: FINDER

Liên hệ

Model: 60.13.8.110.0040

Hãng: FINDER

Liên hệ

Model: 56.42.8.230.0300

Hãng: FINDER

Liên hệ

Model: 56.34.9.220.0040

Hãng: FINDER

Liên hệ

Model: 56.34.9.012.0040

Hãng: FINDER

Liên hệ

Model: 55.34.8.060.0040

Hãng: FINDER

Liên hệ

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	4PDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	12A / 250V AC
DC contacts rating @R (at resistance load)	12A / 30V DC
Contact current max.	20A
Switched voltage	max 220V DC, max 400V AC
Relay variant	industrial
Mounting	socket
Relay series	56.34
Operating temperature	-40…70°C
Body dimensions	27.8 x 41 x 35.2mm
Coil resistance	490Ω
Coil current	49mA
Relay features	test button with blocking function
Contact material	AgSnO2
Coil power consumption	1.3W
Leads	4,8×0,5mm connectors
