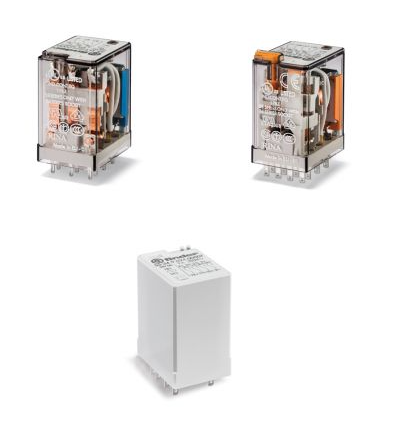

55.34.8.060.0040 Power Relay

Model: 62.32.8.024.0040

Hãng: FINDER

Liên hệ

Model: 60.13.9.024.0074

Hãng: FINDER

Liên hệ

Model: 60.13.8.110.0040

Hãng: FINDER

Liên hệ

Model: 56.42.8.230.0300

Hãng: FINDER

Liên hệ

Model: 56.34.9.220.0040

Hãng: FINDER

Liên hệ

Model: 56.34.9.024.4010

Hãng: FINDER

Liên hệ

Model: 56.34.9.012.0040

Hãng: FINDER

Liên hệ

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	4PDT
Rated coil voltage	60V AC
AC contacts rating @R (at resistance load)	7A / 250V AC
DC contacts rating @R (at resistance load)	7A / 30V DC
Contact current max.	15A
Switched voltage	max 220V DC, max 250V AC
Relay variant	industrial
Mounting	socket
Relay series	55.34
Operating temperature	-40…85°C
Body dimensions	27.7 x 20.7 x 35.8mm
Coil resistance	190Ω
Coil current	53mA
Contact material	AgNi
Coil power consumption	1.5VA
Leads	2,8×0,5mm connectors
Related items	94.04, 94.14
