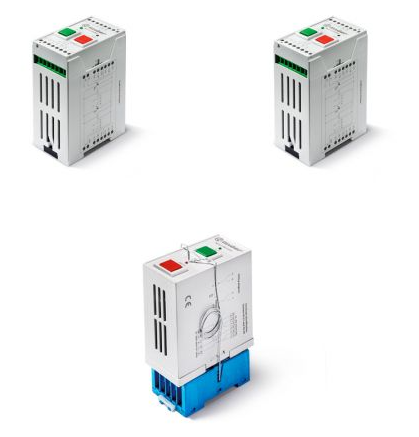

RB.14.9.250.0000 – Modular Bistable Relay DIN

Giá: Liên hệ

Model: RB.14.9.250.0000

Nhà sản xuất: FINDER

Xuất xứ: EU/G7

Danh mục: FINDER

Manufacturer:FINDER

Manufacturer Part No: RB.14.9.250.0000

ROHS	Yes
CONTACT FORM	4PDT
MAX. SWITCHING CURRENT	8 A
COIL VOLTAGE	250VDC
TYPE	Power
COIL RESISTANCE	– Ohm
COIL POWER	7000 mW
MAX. SWITCHING POWER	2000VA
MAX. SWITCHING VOLTAGE	400VAC
DIELECTRIC STRENGTH (BETWEEN COIL AND CONTACTS)	6000VAC
OPERATE/RELEASE TIME	10ms/5ms
DIMENSIONS	109×74,5x44mm
CONTACT MATERIAL	AgSnO2
DESCRIPTION	Bistable
