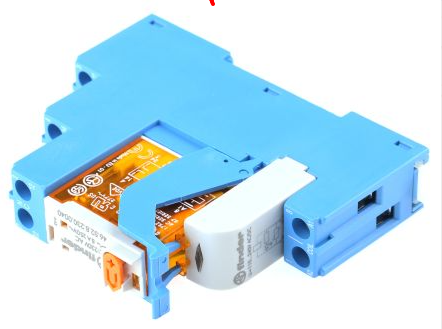

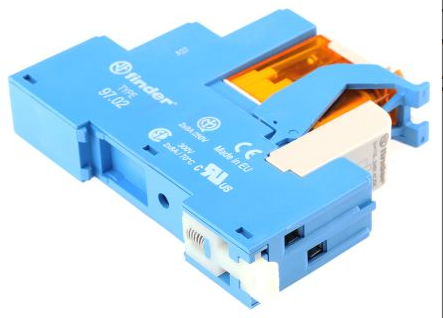

Power Relay 4C.02.8.230.0060 SPA

Giá: Liên hệ

Model: 4C.02.8.230.0060 SPA

Nhà sản xuất: FINDER

Xuất xứ: EU(G7)

Danh mục: FINDER

Manufacturer:FINDER

Manufacturer Part No: 4C.02.8.230.0060 SPA

ATTRIBUTE	VALUE
Coil Voltage	230V ac
Contact Configuration	DPDT
Switching Current	8 A
Mounting Type	DIN Rail
Terminal Type	Screw
Length	15.8mm
Depth	64.6mm
Series	4C Series
Height	82.9mm
Dimensions	81 x 15.8 x 64.6mm
Contact Material	Silver Alloy
Input Current	5mA
Turn On Time	10ms
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +70°C
Maximum Operating Temperature	+70°C
Input Resistance	28000Ω
Turn Off Time	10ms
