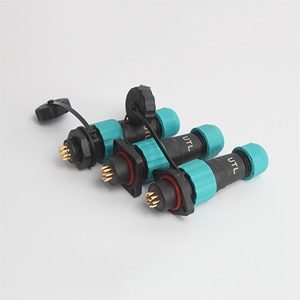

Đầu nối tròn UAC13 Dicrect Clocking With Cable Firm Socket

Giá: Liên hệ

Model: UAC13 002

Nhà sản xuất: UTL

Xuất xứ: China

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
Info@pumptech.vn

Model Description

UAC-Product Name
Socket Series		Plug Series
Name	Code	Name	Code
After The Nut Socket	ZM	Straight Type Cable With Fastening Plug	TP
2-Hole Sokcet With Flange	ZS	Bending Type Cable With Fastening Plug	TA
Square 4-hole Socket	ZG
Dicrect Clocking With Cable Firm Socket	ZP

Note: The product can be customized anti-loading, delivery time depends on the quantity of the order, Normally about 1-3 days.

Product Description

Product Name	UAC Aviation Connector
Model No.	UAC13 Dicrect Clocking With Cable Firm Socket
Coupling	Threaded coupling
Shell Material	Thermoplastic PA66、PA6
Insert Material	PPS Max termperature 260℃
Contact Material	Bass with gold plating
Termination	Solder
Mating cycle	＞500 times
Temperature Range	-25℃ to 85℃

Dimensions

Technical Parameters

UAC13	01	02	03	04	05	06	07
Pin plug insulator front view
Contact diameter（φMM）	φ2.8×1	φ1.8×2	φ1×3	φ1×4	φ1×4	φ1×6	φ1×7
Rated current(A)	25A	10A	5A	5A	5A	5A	5A
Operating Voltage（AC.V）	380V	380V	250V	250V	250V	250V	250V
Pressure resistance（AC.A）	1500V	1500V	1500V	1500V	1500V	1500V	1500V
Contact resistance MΩ	2	2	5	5	5	5	5
Insulation resistance NΩ	2000	2000	2000	2000	2000	2000	2000
