UAC-Product Name |
Socket Series |
Plug Series |
Name |
Code |
Name |
Code |
After The Nut Socket |
ZM |
Straight Type Cable With Fastening Plug |
TP |
2-Hole Sokcet With Flange |
ZS |
Bending Type Cable With Fastening Plug |
TA |
Square 4-hole Socket |
ZG |
|
|
Dicrect Clocking With Cable Firm Socket |
ZP |
|
|
Note: The product can be customized anti-loading, delivery time depends on the quantity of the order, Normally about 1-3 days!

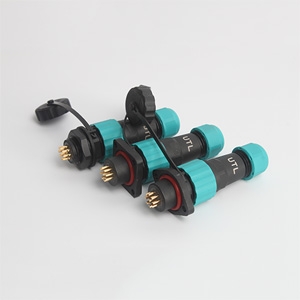

Product Description
Product Name |
UAC Aviation Connector |
Model No. |
UAC20 Bending Type 2-Hole Sokcet With Flange |
Coupling |
Threaded coupling |
Shell Material |
Thermoplastic PA66、PA6 |
Insert Material |
PPS Max termperature 260℃ |
Contact Material |
Brass with gold plating |
Termination |
Solder |
Mating cycle |
>500 times |
Temperature Range |
-25℃ to 85℃ |
Dimensions
Technical Parameters
UAC20 |
02 |
03 |
04 |
05 |
06 |
07 |
09 |
10 |
12 |
14 |
Pin plug insulator front view |
|
|
|
|
|
|
|
|
|
|
Contact diameter(φMM) |
φ2.8×2 |
φ2.8×3 |
φ2.8×4 |
φ2.8×5 |
φ2.8×6 |
φ1×7 |
φ1×9 |
φ1×10 |
φ1×12 |
φ1×14 |
Rated current(A) |
25A |
25A |
25A |
25A |
10A |
10A |
5A |
5A |
5A |
5A |
Operating Voltage(AC.V) |
380V |
380V |
380V |
380V |
380V |
380V |
250V |
250V |
250V |
250V |
Pressure resistance(AC.A) |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
Contact resistance MΩ |
1 |
1 |
1 |
1 |
2 |
2 |
5 |
5 |
5 |
5 |
Insulation resistance NΩ |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
