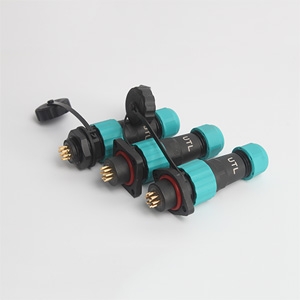

Đầu nối tròn UAC13 2-Hole Sokcet With Flange

Giá: Liên hệ

Model: UAC13 003

Nhà sản xuất: UTL

Xuất xứ: China

UAC-Product Name
Socket Series		Plug Series
Name	Code	Name	Code
After The Nut Socket	ZM	Straight Type Cable With Fastening Plug	TP
2-Hole Sokcet With Flange	ZS	Bending Type Cable With Fastening Plug	TA
Square 4-hole Socket	ZG
Dicrect Clocking With Cable Firm Socket	ZP

Note: The product can be customized anti-loading, delivery time depends on the quantity of the order, Normally about 1-3 days.

Product Description

Dimensions

Technical Parameters

UAC13	01	02	03	04	05	06	07
Pin plug insulator front view
Contact diameter（φMM）	φ2.8×1	φ1.8×2	φ1×3	φ1×4	φ1×4	φ1×6	φ1×7
Rated current (A)	25A	10A	5A	5A	5A	5A	5A
Operating Voltage（AC.V）	380V	380V	250V	250V	250V	250V	250V
Pressure resistance（AC.A）	1500V	1500V	1500V	1500V	1500V	1500V	1500V
Contact resistance MΩ	2	2	5	5	5	5	5
Insulation resistance NΩ	2000	2000	2000	2000	2000	2000	2000
