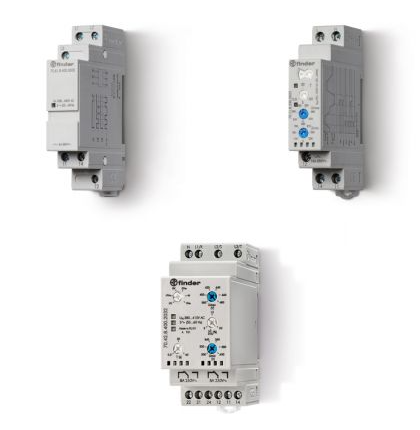

70.62.8.400.0000 Finder 8 A DPDT Solid State Relay

Giá: Liên hệ

Model: 70.62.8.400.0000

Nhà sản xuất: FINDER

Xuất xứ: EU/G7

Danh mục: FINDER

Manufacturer:FINDER

Manufacturer Part No: 70.62.8.400.0000

ATTRIBUTE	VALUE
Minimum Load Current	5 mA
Maximum Load Current	8 A
Mounting Type	DIN Rail
Series	Series 70
Minimum Load Voltage	250 V ac
Maximum Load Voltage	400 V ac
Minimum Control Voltage	208 V ac
Maximum Control Voltage	480 V ac
Switching Type	AC
Contact Configuration	DPDT
Terminal Type	Screw
Maximum Turn On Time	2 ms
Dimensions	22.5 x 100.3 x 78.8mm
Height	78.8mm
Length	86.3mm
Depth	100.3mm
Load Voltage Range	250 → 400V ac
Operating Temperature Range	-20 → +60°C
Control Voltage Range	208 → 480 V ac
