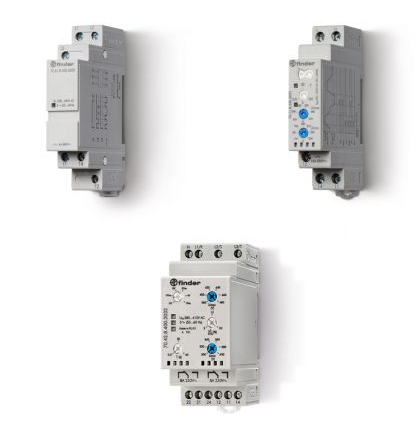

70.41.8.400.2030 Phase Monitoring Relay

Giá: Liên hệ

Model: 70.41.8.400.2030

Nhà sản xuất: FINDER

Xuất xứ: EU/G7

Danh mục: FINDER

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
Info@pumptech.vn

Manufacturer:FINDER

Manufacturer Part No: 70.41.8.400.2030

ATTRIBUTE	VALUE
Monitoring Application	Voltage
Supply Voltage	380 → 415 V
Contact Configuration	SPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Electrical Phase	3
Voltage Sensing Range	300 → 480 V ac
Phase Sensitivity	Phase Asymmetry, Phase Loss, Phase Sequence
Time Delay	0.5 → 60 s
Frequency Sensing Range	50 → 60 Hz
Operating Temperature Range	-20 → +60 °C
Length	88.8mm
Width	35mm
Current Range	6 A
Series	70 Series
Maximum Voltage Sensed	480V ac
Dimensions	60.8 x 35 x 88.8 mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-20°C
Minimum Voltage Sensed	300 V
Height	60.8mm
