Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	4PDT
Rated coil voltage	110VAC
AC contacts rating @R (at resistance load)	12A / 250V AC
DC contacts rating @R (at resistance load)	12A / 30V DC
Contact current max.	20A
Switched voltage	max 220V DC, max 400V AC
Relay variant	industrial
Mounting	socket
Relay series	56.34
Operating temperature	-40…70°C
Body dimensions	27.7 x 20.7 x 37.7mm
Coil resistance	600Ω
Coil current	40mA
Relay features	test button with blocking function
Contact material	AgNi
Coil power consumption	1W
Leads	4,8×0,5mm connectors

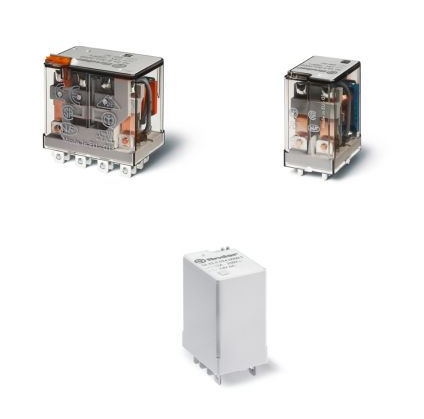

56.34.8.110.0040 – Power Relay
