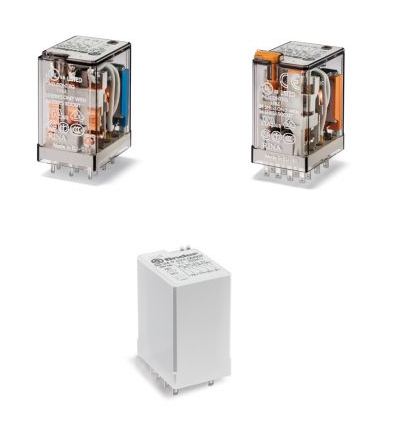

55.34.8.024.0054 – Power Relay

ManufacturerFINDER

Type of relayelectromagnetic

Contacts configuration 4PDT

Rated coil voltage24V AC

AC contacts rating @R (at resistance load)7A / 250V AC

DC contacts rating @R (at resistance load)7A / 30V DC

Contact current max.15A

Switched voltagemax 220V DC, max 250V AC

Relay variantindustrial

Mountingsocket

Relay series55.34

Operating temperature-40…85°C

Body dimensions27.7 x 20.7 x 35.8mm

Coil resistance190Ω

Coil current53mA

Contact materialAgNi

Coil power consumption1.5VA

Leads2,8×0,5mm connectors

Related items94.04, 94.14
