Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	3PDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	10A / 250V AC
DC contacts rating @R (at resistance load)	10A / 30V DC
Contact current max.	20A
Switched voltage	max 220V DC, max 400V AC
Relay variant	industrial
Mounting	socket
Relay series	55.33
Operating temperature	-40…85°C
Body dimensions	27.7 x 20.7 x 35.8mm
Coil resistance	600Ω
Coil current	40mA
Contact material	AgNi
Coil power consumption	1W
Leads	2,8×0,5mm connectors
Related items	94.03, 94.13

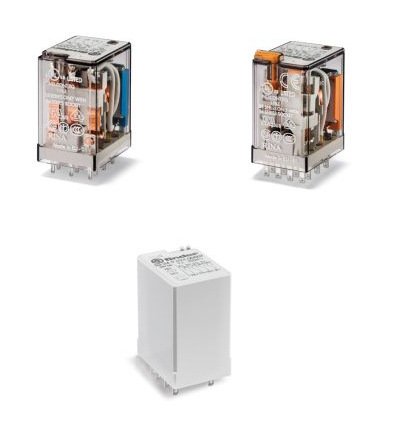

55.33.9.024.0090 – Power Relay
