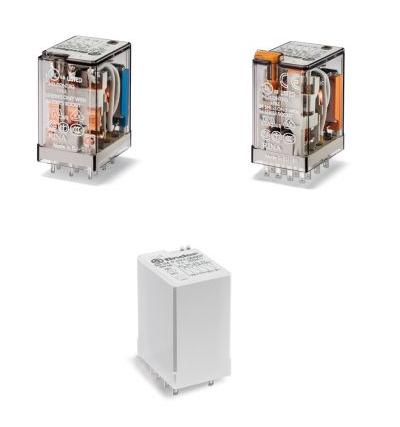

55.32.9.024.0074 Power Relay

Model: 62.32.8.024.0040

Hãng: FINDER

Liên hệ

Model: 60.13.9.024.0074

Hãng: FINDER

Liên hệ

Model: 60.13.8.110.0040

Hãng: FINDER

Liên hệ

Model: 56.42.8.230.0300

Hãng: FINDER

Liên hệ

Model: 56.34.9.220.0040

Hãng: FINDER

Liên hệ

Model: 56.34.9.024.4010

Hãng: FINDER

Liên hệ

Model: 56.34.9.012.0040

Hãng: FINDER

Liên hệ

Model: 55.34.8.060.0040

Hãng: FINDER

Liên hệ

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	DPDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	10A / 250V AC
DC contacts rating @R (at resistance load)	10A / 30V DC
Contact current max.	20A
Switched voltage	max 220V DC, max 400V AC
Relay variant	industrial
Mounting	socket
Relay series	55.32
Operating temperature	-40…85°C
Body dimensions	27.7 x 20.7 x 35.8mm
Coil resistance	600Ω
Coil current	40mA
Contact material	AgNi
Coil power consumption	1W
Leads	2,8×0,5mm connectors
Related items	94.02, 94.12
