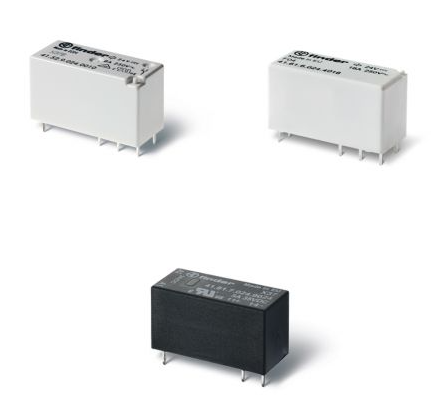

41.61.9.024.0010 General Purpose Relay

Model: 62.32.8.024.0040

Hãng: FINDER

Liên hệ

Model: 60.13.9.024.0074

Hãng: FINDER

Liên hệ

Model: 60.13.8.110.0040

Hãng: FINDER

Liên hệ

Model: 56.42.8.230.0300

Hãng: FINDER

Liên hệ

Model: 56.34.9.220.0040

Hãng: FINDER

Liên hệ

Model: 56.34.9.024.4010

Hãng: FINDER

Liên hệ

Model: 56.34.9.012.0040

Hãng: FINDER

Liên hệ

Model: 55.34.8.060.0040

Hãng: FINDER

Liên hệ

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	16A / 250VAC
DC contacts rating @R (at resistance load)	16A / 30VDC
Contact current max.	30A
Switched voltage	max 220V DC, max 400V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	1.44kΩ
Coil voltage min.	16.8V DC
Coil voltage max.	36V DC
Body dimensions	29 x 12.5 x 15.7mm
Coil power consumption	400mW
Mechanical durability	3000000cycles
Operating temperature	-40…85°C
Relay series	41.61
Contact material	AgNi
Terminal pitch	5mm
