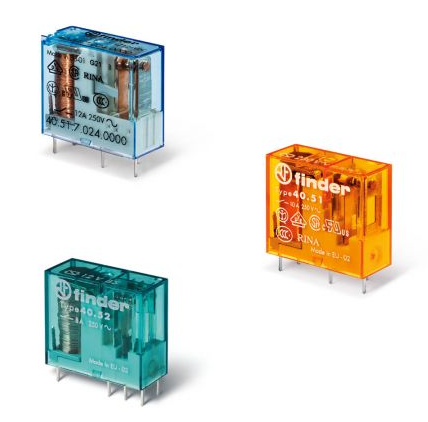

40.51.8.024.0000 FINDER RELAY

Model: 62.32.8.024.0040

Hãng: FINDER

Liên hệ

Model: 60.13.9.024.0074

Hãng: FINDER

Liên hệ

Model: 60.13.8.110.0040

Hãng: FINDER

Liên hệ

Model: 56.42.8.230.0300

Hãng: FINDER

Liên hệ

Model: 56.34.9.220.0040

Hãng: FINDER

Liên hệ

Model: 56.34.9.024.4010

Hãng: FINDER

Liên hệ

Model: 56.34.9.012.0040

Hãng: FINDER

Liên hệ

Model: 55.34.8.060.0040

Hãng: FINDER

Liên hệ

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	24V AC
AC contacts rating @R (at resistance load)	10A / 250VAC
DC contacts rating @R (at resistance load)	10A / 30VDC
Contact current max.	20A
Switched voltage	max 220V DC, max 400V AC
Relay variant	miniature
Mounting	PCB, socket
Coil resistance	320Ω
Body dimensions	29 x 12.4 x 25mm
Coil power consumption	1.2VA
Operating temperature	-40…85°C
Relay series	40.51
Contact material	AgNi
Terminal pitch	5mm
Coil current	45mA
