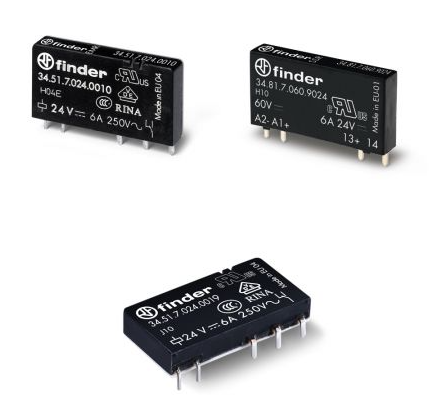

34.51.7.005.5010 General Purpose Relay

Model: 62.32.8.024.0040

Hãng: FINDER

Liên hệ

Model: 60.13.9.024.0074

Hãng: FINDER

Liên hệ

Model: 60.13.8.110.0040

Hãng: FINDER

Liên hệ

Model: 56.42.8.230.0300

Hãng: FINDER

Liên hệ

Model: 56.34.9.220.0040

Hãng: FINDER

Liên hệ

Model: 56.34.9.024.4010

Hãng: FINDER

Liên hệ

Model: 56.34.9.012.0040

Hãng: FINDER

Liên hệ

Model: 55.34.8.060.0040

Hãng: FINDER

Liên hệ

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	5V DC
AC contacts rating @R (at resistance load)	6A / 250V AC
DC contacts rating @R (at resistance load)	6A / 30V DC
Contact current max.	6A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	interface
Mounting	PCB, socket
Coil resistance	130Ω
Coil voltage min.	3.5V DC
Coil voltage max.	7.5V DC
Body dimensions	28x5x15mm
Coil power consumption	170mW
Mechanical durability	1000000cycles
Operating temperature	-40…85°C
Relay series	34.51
Contact material	AgNi/Au 5μm
Terminal pitch	5mm
Coil current	38.4mA
Related items	93.01.7.024, 93.01.7.060, 93.11, 93.51.3.125, 93.51.3.240
