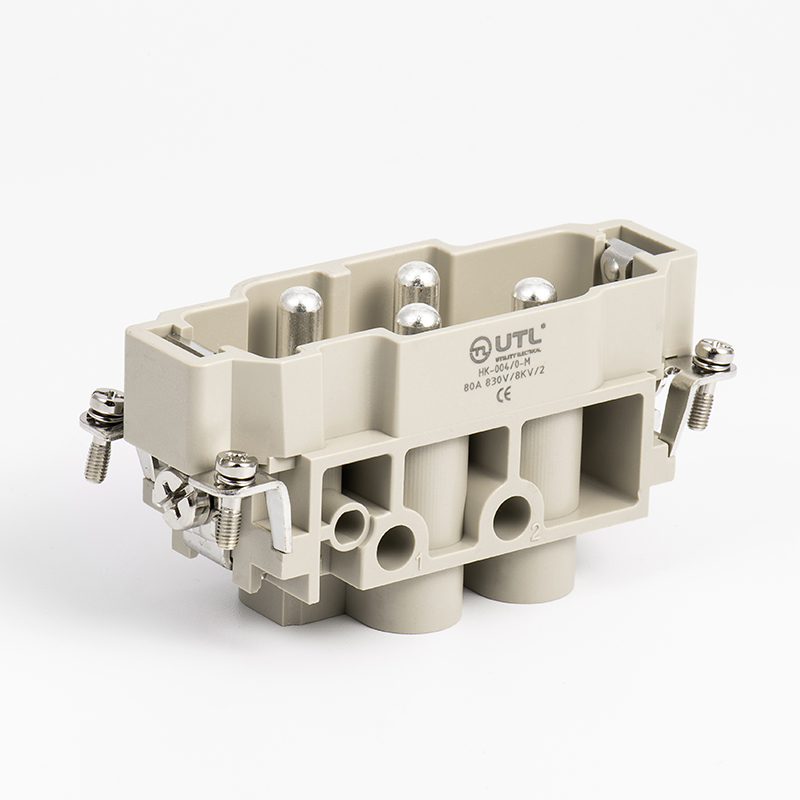

UTL-HK-004/0-M

Giá: Liên hệ

Model: UTL-HK-004/0-M

Nhà sản xuất: UTL

Xuất xứ: China

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
Info@pumptech.vn

Model	UTL-HK-004/0-M
Type	Male
Colour	Gray
Number of contacts	4
Length	84.5	mm
Width	34	mm
Height	42	mm
Standard	IEC60664 IEC61984
Rate voltage	830	V
Rate current	80	A
Pollution degree	Ⅲ
Rate impulse voltage	8	KV
Insulation resistance	≤0.3	mΩ
Min.connection capacity for solid wire	1.5/16	mm2/AWG
Max.connection capacity for solid wire	16/6	mm2/AWG
Min.connection capacity for strand wire	1.5/16	mm2/AWG
Max.connection capacity for strand wire	16/6	mm2/AWG
Torque	3	N.m
Insulation resistance	1010	Ω
Mechanical woking life	≥500	Times
Housing meterial	PC(UL94 V-0)
Metal meterial	Copper alloy
Operating temperature	-40℃～+125℃
Certification
