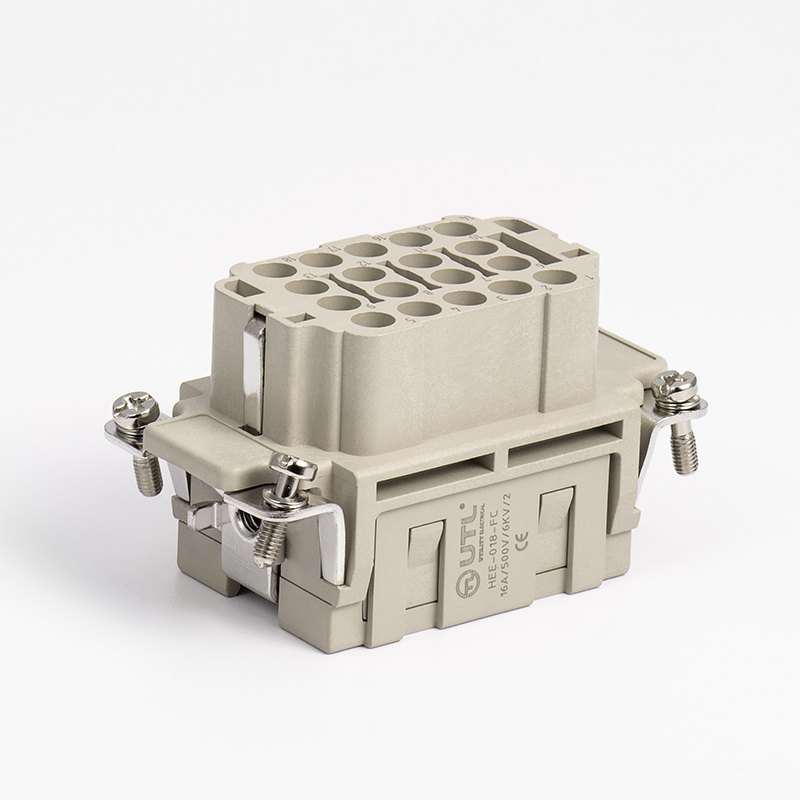

UTL-HEE-018-FC

Giá: Liên hệ

Model: UTL-HEE-018-FC

Nhà sản xuất: UTL

Xuất xứ: China

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
Info@pumptech.vn

Model	UTL-HEE-018-FC
Type	Female
Colour	Gray
Number of contacts	18
Length	63	mm
Width	34	mm
Height	36.2	mm
Standard	IEC60664 IEC61984
Rate voltage	500	V
Rate current	16	A
Pollution degree	Ⅲ
Rate impulse voltage	6	KV
Insulation resistance	1010	Ω
Mechanical woking life	≥500	Times
Contact resistance	≤1	mΩ
Min.connection capacity for solid wire	0.14/26	mm2/AWG
Max.connection capacity for solid wire	4/12	mm2/AWG
Min.connection capacity for strand wire	0.14/26	mm2/AWG
Max.connection capacity for strand wire	4/12	mm2/AWG
Housing meterial	PC(UL94 V-0)
Metal meterial	Copper alloy
Operating temperature	-40℃～+125℃
Stripping length	7.5	mm
Certification
