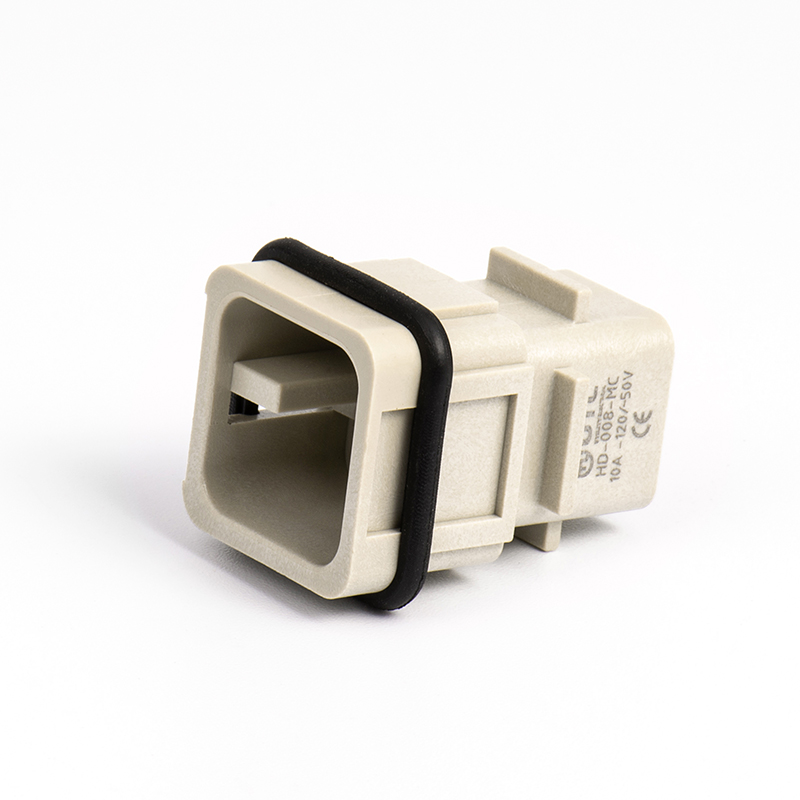

UTL-HD-008-MC

Giá: Liên hệ

Model: UTL-HD-008-MC

Nhà sản xuất: UTL

Xuất xứ: Đang cập nhật

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
Info@pumptech.vn

Model	UTL-HD-008-MC
Type	Male
Colour	Gray
Number of contacts	8
Length	21	mm
Width	21	mm
Height	31.6	mm
Standard	IEC60664 IEC61984
Rate voltage	250	V
Rate current	10	A
Pollution degree	Ⅲ
Rate impulse voltage	4	KV
Insulation resistance	1010	Ω
Mechanical woking life	≥500	Times
Contact resistance	≤3	mΩ
Min.connection capacity for solid wire	0.14/26	mm2/AWG
Max.connection capacity for solid wire	2.5/14	mm2/AWG
Min.connection capacity for strand wire	0.14/26	mm2/AWG
Max.connection capacity for strand wire	2.5/14	mm2/AWG
Housing meterial	PC(UL94 V-0)
Metal meterial	Copper alloy
Operating temperature	-40℃～+125℃
Certification
