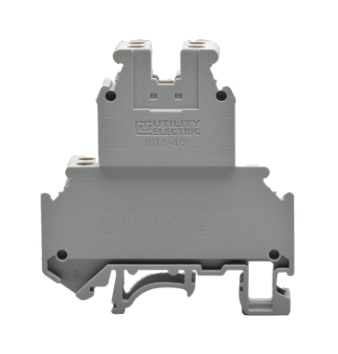

Thiết bị đầu cuối phân phối công nghiệp JUT1-4-2

Giá: Liên hệ

Model: JUT1-4-2

Nhà sản xuất: UTL

Xuất xứ: China

74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
0909 057 026
(028) 3853 6931
info@pumptech.vn

name	numeric value	unit
Number of connection points	2
Number of potentials	1
color	ash
length	56	mm
width	6.2	mm
With U-rail height	62	mm
With G-rail height	67	mm
Pollution level	3
Insulating material groups	Ⅰ
Rated impulse voltage	8	KV
Meets Criteria (1)	IEC60947-7-1
Rated Voltage(1)	500	V
Rated Current(1)	32	A
Meets Standard(2)	UL1059
Rated Voltage(2)	300	V
Rated Current(2)	30	A
Minimum wiring capacity for a single strand	0.2/24	mm²/AWG
Maximum wiring capacity of a single strand	42472	mm²/AWG
Minimum wiring capacity for stranded wires	0.2/24	mm²/AWG
Maximum wiring capacity for stranded wires	42472	mm²/AWG
Incoming direction	Side inlets
Strip length	8	mm
insulating materials	PA66
Flammability rating	UL94 V-0
