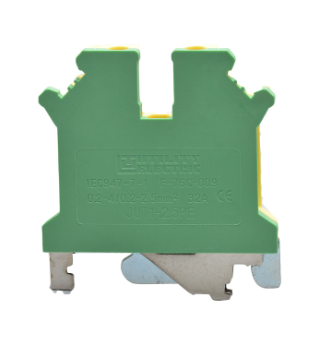

Thiết bị đầu cuối phân phối công nghiệp JUT1-2.5PE

Giá: Liên hệ

Model: JUT1-2.5PE

Nhà sản xuất: UTL

Xuất xứ: China

name	numeric value	unit
Number of connection points	2
Number of potentials	1
color	Yellow and green
length	42.5	mm
width	5.2	mm
With U-rail height	47	mm
With G-rail height	52	mm
Meets standards	IEC60947-7-2
Pollution level	3
Insulating material groups	Ⅰ
Rated impulse voltage	8	KV
Minimum wiring capacity for a single strand	0.2/24	mm²/AWG
Maximum wiring capacity of a single strand	2.5/12	mm²/AWG
Minimum wiring capacity for stranded wires	0.2/24	mm²/AWG
Maximum wiring capacity for stranded wires	1.5/14	mm²/AWG
Incoming direction	Side inlets
Strip length	8	mm
insulating materials	PA66
Flammability rating	UL94 V-0
