SiFire-Easy-65/200-207-26,5D

Giá: Liên hệ

Model: SiFire-Easy-65/200-207-26,5D

Nhà sản xuất: WILO

Xuất xứ: Đức

Danh mục: BƠM CHỮA CHÁY (FIRE PUMP)

HỖ TRỢ KHÁCH HÀNG

  • 74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
  • 0909 057 026
  • (028) 3853 6931
  • Info@pumptech.vn

Hệ thống tăng áp như một thiết bị nhỏ gọn hoàn toàn tự động cho mục đích chữa cháy phù hợp với EN 12845.

Pressure boosting system as a fully automatic compact unit for fire fighting purposes in accordance with EN 12845.

Bao gồm một máy bơm với khung đế nằm ngang - EN 733 - với khớp nối đệm, động cơ diesel và bình áp suất màng (dung tích: 20 l) và một tủ công tắc, được cố định vào một cấu trúc hỗ trợ chắc chắn.

Consisting of a pump with horizontal base frame - EN 733 - with spacer coupling, diesel motor and diaphragm pressure vessel (capacity: 20 l) and one switch cabinet, fixed to a robust support structure.

Model EC-Fire D dành cho động cơ diesel, được trang bị Bộ điều khiển dễ dàng, kết cấu vững chắc được làm bằng các bộ phận định hình đặc biệt với các đường cắt cho xe nâng và móc để đảm bảo vận chuyển an toàn, không gặp sự cố. Giá đỡ có thể điều chỉnh độ cao cho ống góp đầu ra và tấm đế đặc biệt cho động cơ diesel giúp giảm đáng kể sự truyền dao động và tăng độ tin cậy và tuổi thọ.

Model EC-Fire D for the diesel motor, equipped with Easy Controller, solid construction made of special profiled parts with cut-outs for forklift trucks and hooks to ensure trouble-free, safe transportation. Height-adjustable bracket for the outlet manifold and special base plate for the diesel motor which reduces the transfer of vibrations considerably and increases the reliability and service life.

Một mạch có công tắc áp suất kép, đồng hồ đo áp suất, van một chiều, van (được bảo đảm không cho người không được phép sử dụng) cho máy bơm chính để khởi động tự động. Các dây cáp được giấu trong kết cấu và được bảo vệ chống va đập và cắt. Được trang bị một màng ngăn được lắp đặt trực tiếp trên vỏ máy bơm chính theo tiêu chuẩn, để tránh quá nhiệt trong trường hợp lưu lượng bằng không.

A circuit with dual pressure switch, pressure gauge, non-return valve, valve (secured from use by unauthorised personnel) for the main pump for automatic start. The cables are concealed in the construction and protected against bumps and cuts. Equipped with a diaphragm installed directly on the main pump housing as standard, to prevent overheating in the event of zero flow.

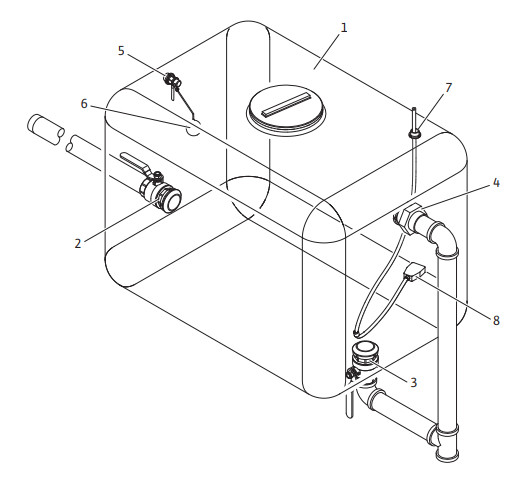

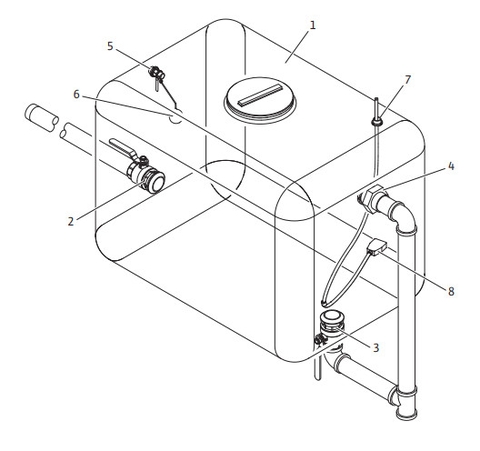

Bình nhiên liệu với cảm biến mức và thể tích đủ cho sáu giờ hoạt động tự động, cũng như 2 pin trên khung cơ sở và bộ sạc pin trên tủ chuyển đổi EC-Fire.

Fuel tank with level sensor and sufficient volume for six hours of autonomous operation, as well as 2 batteries on the base frame and battery charging units on the EC-Fire switch cabinet.

Khung đế chống rung độc lập cho máy bơm động cơ diesel.

Independent anti-vibration base frame for the diesel motor pump.

Thiết bị đóng cắt EC-Fire D cho hệ thống chữa cháy theo EN 12845.

EC-Fire D switchgear for fire extinguishing systems according to EN 12845.

Thiết bị đóng cắt tích hợp trong vỏ kim loại tấm phù hợp với cấp bảo vệ IP54.

Switchgear integrated in a sheet metal enclosure in accordance with protection class IP54.

Điều chỉnh tối ưu và dễ sử dụng bằng điều khiển EC-Fire với hiển thị trực tiếp trạng thái hoạt động hiện tại, với màn hình LCD đa ngôn ngữ dựa trên biểu tượng, giao diện người dùng dễ dàng với điều hướng menu đơn giản, các nút để cài đặt nhanh các thông số. Bộ điều khiển giao tiếp để giám sát hoạt động của hệ thống.

Optimum regulation and ease of use by EC-Fire control with direct display of the current operating status, with symbol-based multilingual LCD display, easy user interface with simple menu navigation, buttons for quick setting of parameters. Communicative controller for monitoring system operation.​​​​​​​

Hệ thống đã được gắn trên khung cơ sở với dây và ống sẵn sàng để kết nối.

The system has been mounted on the base frame with wires and pipes are ready for connection.

Áp suất đầu vào:

Inlet pressure:

Áp suất đầu vào lớn nhất phải được tính đến khi thiết kế cấu hình hệ thống (xem Dữ liệu kỹ thuật). Áp suất đầu vào tối đa cho phép được tính từ áp suất hoạt động lớn nhất của hệ thống trừ đi cột áp lớn nhất của máy bơm tại Q = 0. Đối với hệ thống sprinkler phù hợp với EN 12845, áp lực nước không được vượt quá 12 bar. Trong các hệ thống sprinkler có độ dốc rõ rệt, trong đó chênh lệch độ cao giữa sprinkler cao nhất và thấp nhất lớn hơn 45 m, áp lực nước có thể cao hơn 12 bar tại đầu ra máy bơm hoặc trong đường ống, với điều kiện là tất cả hệ thống các thành phần được thiết kế cho mức áp suất này.

The maximum inlet pressure must be taken into account when designing the system configuration (see Technical data). The maximum permissible inlet pressure is calculated from the maximum operating pressure of the system minus the maximum pumping head of the pump at Q = 0. For sprinkler systems in accordance with EN 12845, the water pressure should not exceed 12 bar. In sprinkler systems with a pronounced slope, in which the difference in height between the highest and lowest sprinkler is more than 45 m, the water pressure can be higher than 12 bar at the pump outlet or in the piping, provided that all of the system components are designed for this pressure level.

Lắp đặt bơm tăng áp trong điều kiện hút.

Installation of the pressure boosting pump under suction conditions.

Đối với máy bơm chính, cần lắp đặt bình cấp có kết nối với đường ống xả phía trên máy bơm.

For the main pump, it is necessary to install a supply tank with connection to the discharge pipe above the pump.

Lưu lượng dòng chảy

Volume flow

Cấu hình hệ thống lên đến 350 m³ / h (97 l / s) cho máy bơm chính.

Up to 350 m³/h (97 l/s) system configuration for the main pump.

Thiết bị đóng cắt / điều khiển hệ thống cấp nước chữa cháy

Switchgear/control device for fire water supply systems

Hydraulic data
  • Maximum inlet pressure p inl 6 bar
  • Maximum operating pressure PN 16 bar
  • Min. fluid temperature Tmin 3 °C
  • Max. fluid temperature Tmax 25 °C
  • Min. ambient temperature Tmin 10 °C
  • Max. ambient temperature Tmax 40 °C
Motor data
  • Mains connection 3~230-400 V, 50/60 Hz
  • Rated power P2 0.00 kW
  • Rated current IN 0.00 A
  • Rated speed n 0 rpm
  • Protection class switchgear IP54
Materials
  • Pump housing Cast iron
  • Shaft Stainless steel
  • Gasket material EPDM
  • Pipework material Steel
Installation dimensions
  • Pipe connection on the suction side DNs DN 80
  • Pipe connection on the pressure side DNd DN 100
Information for order placements
  • Brand Wilo
  • Product description SiFire-Easy-65/200-207-26,5D
  • EAN number 4062679089119
  • Article number 4242165
  • Net weight, approx. m 713
  • Gross weight, approx. m 743.0
  • Length with packaging 48.26772 in
  • Height with packaging 75.86614 in
  • Width with packaging 90.3937 in
  • Packaging property Sales packaging
  • Packaging type Special pallet
  • Minimum order quantity 1
