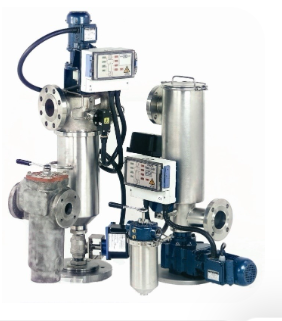

The Standard Range of self cleaning filters provides highly cost effective solutions to difficult liquid filtration problems of all viscosities
Self cleaning for liquid duties requiring continuous filtration without interruption to the flow during the cleaning process.
In operation the liquid enters the body and flows through the element from outside to inside.
Debris is collected on the outside of the wedge wire element, which is cleaned without flow interruption by rotating the cylindrical element against twin
scraper blades. The debris accumulated during element rotation is deposited into the bottom of the filter body from where it is periodically discharged, manually
or automatically.
Features:
- S1 -Standard Pressure (13.8 barg)
- S2 – High Pressure (35 barg)
- S4 – Rotor blade – High viscosity design (13.8 barg)
- Minimum product loss
- Quick opening
- Material options in Cast Ion and Stainless Steel
- Operation options: Manual, Motorised and fully automated
- Filtration down to m25 micron
- Reduced contamination and product waste contained
- Element option: Wedge Wire, perforated and oval perforated designs
- Options: Heating jackets, plastic and hardened blade options, customised control panels
