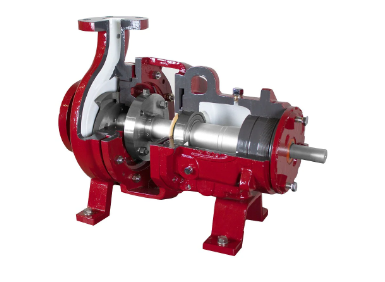

460 series OSD ANSI Pumps

OSD ANSI B73.1 Process Pumps are used in harsh process applications in a variety of industrial and municipal markets. The OSD series ANSI pumps feature heavy-duty castings, oversized shafts, oil lubrication, single row inboard and double row outboard bearings and choice of optional metallurgies.

Technical Data

- Max Flow: 9,000 GPM
- Max Head: 900 feet
- Temperature up to 220°F
- Base mounted, flex-coupled
- Discharge sizes: 1"-8"

Features & Benefits

- Reverse-vane
- Semi-open & low-flow impellers
- Back pull-out
- Heavy-duty
- Multiple stuffing box configurations

Applications

Petro (Oil & Gas)

Dữ liệu và thông tin sản phẩm

OSD Low Flow:

1500 RPM https://cms.media.wilo.com/cdndoc/wilo497031/8034654/wilo497031.pdf

OSD Reverse Vane Impeller:

1000 RPM https://cms.media.wilo.com/cdndoc/wilo497035/6326916/wilo497035.pdf

OSD Semi-Open Impellers:

1000 RPM https://cms.media.wilo.com/cdndoc/wilo497041/6326988/wilo497041.pdf

DIMENSIONAL INFORMATION:

https://cms.media.wilo.com/cdndoc/wilo524245/6318772/wilo524245.pdf

ENGINEERING INFORMATION:

https://cms.media.wilo.com/cdndoc/wilo524452/6321081/wilo524452.pdf

https://cms.media.wilo.com/cdndoc/wilo524453/6321085/wilo524453.pdf
