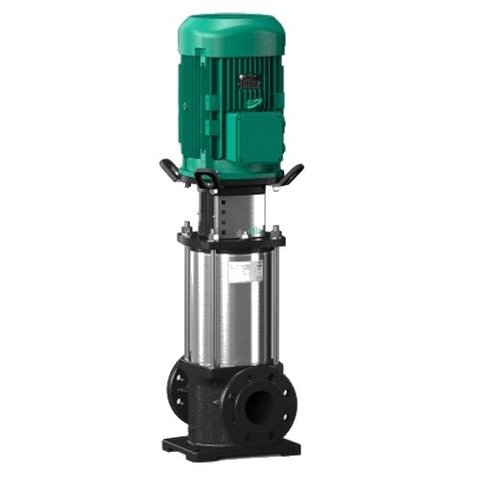

Helix FIRST V 405-5/25/E/S/

Giá: Liên hệ

Model: Helix FIRST V 405-5/25/E/S/

Nhà sản xuất: WILO

Xuất xứ: Đức

Danh mục: Bơm Công Nghiệp Đã Cấp

HỖ TRỢ KHÁCH HÀNG

  • 74 Trịnh Đình Thảo, Phường Phú Trung, Quận Tân Phú, Thành phố Hồ Chí Minh, Việt Nam
  • 0909 057 026
  • (028) 3853 6931
  • Info@pumptech.vn

Máy bơm ly tâm đa tầng áp suất cao hiệu quả cao trong thiết kế thẳng đứng với các kết nối nội dòng.

Highly efficient high-pressure multistage centrifugal pump in vertical design with in-line connections.

Máy bơm ly tâm đa tầng áp suất cao không tự mồi có thiết kế tổng thể đặc biệt nhỏ gọn. Trục bơm và trục động cơ của động cơ tiêu chuẩn IEC được nối với nhau bằng khớp nối kẹp. Một ổ lăn đèn lồng riêng biệt đảm bảo tiếp nhận tối ưu lực đẩy dọc trục.

The non self-priming high-pressure multistage centrifugal pump has a particularly compact overall design. The pump shaft and the motor shaft of the IEC standard motor are connected by means of a clamp coupling. A separate lantern roller bearing ensures optimum admission of axial thrusts.

Vòng bi trung gian trong hệ thống thủy lực và trục chống ăn mòn do ống bọc thép không gỉ đảm bảo tuổi thọ lâu dài.

Intermediate bearings in the hydraulics and corrosion-resistant shaft due to stainless steel sleeve ensure a long service life.

Vỏ máy bơm và đèn lồng được phủ chất chống thấm.

The pump housing and lantern are cataphoretic-coated.

Máy bơm thích hợp cho việc phân phối nước và tăng áp, hệ thống tuần hoàn công nghiệp, nước xử lý và mạch làm mát kín. Nó cũng có thể được sử dụng trong hệ thống chữa cháy, hệ thống rửa cũng như để tưới tiêu.

The pump is suitable for water distribution and pressure boosting, industrial recirculation systems, process water and closed cooling circuits. It can also be used in fire extinguishing systems, washing systems as well as for irrigation.






Hydraulic data
  • Minimum efficiency index (MEI) 0.7
  • Maximum inlet pressure p inl 10 bar
  • Maximum operating pressure PN 16 bar
  • Pressure port DN 25
  • Min. fluid temperature Tmin -20 °C
  • Max. fluid temperature Tmax 120 °C
  • Min. ambient temperature Tmin -15 °C
  • Max. ambient temperature Tmax 50 °C
Motor data
  • Mains connection 3~400 V, 50 Hz
  • Voltage tolerance ±10 %
  • Rated power P2 0.75 kW
  • Rated current IN 1.70 A
  • Rated speed n 2900 1/min
  • Power factor cos φ 0.81
  • Activation type Direct online (DOL)
  • Motor efficiency ηM 50% 76
  • Motor efficiency ηM 75% 79.7
  • Motor efficiency ηM 100% 80.7
  • Insulation class F
  • Protection class motor IP55
Materials
  • Pump housing Cast iron
  • Impeller Stainless steel
  • Shaft Stainless steel
  • Mechanical seal U3BE3GG
  • Gasket material EPDM
Installation dimensions
  • Pipe connection on the suction side DNs DN 25
  • Pipe connection on the pressure side DNd DN 25
Information for order placements
  • Brand Wilo
  • Product description Helix FIRST V 405-5/25/E/S/
  • EAN number 4048482590592
  • Article number 4201084
  • Net weight, approx. m 32 kg
  • Gross weight, approx. m 35.8 kg
  • Length with packaging 800 mm
  • Height with packaging 370 mm
  • Width with packaging 400 mm
  • Packaging property Transport packaging
  • Packaging type Cardboard box
  • Minimum order quantity 1
